EMR

Overview :

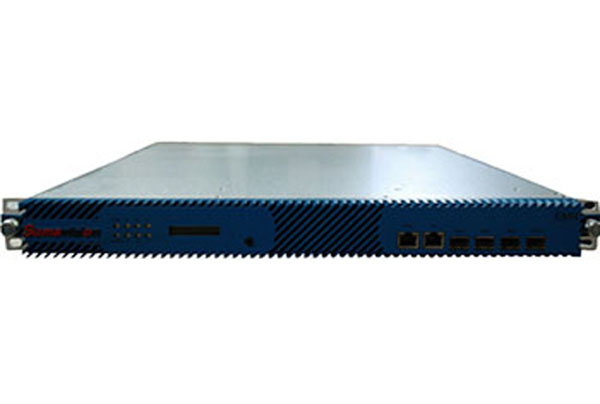

Sumavision’s EMR is designed in full accordance with 3G standard, so it is the world’s only DTV 3G product. EMR can support any inputs (DVB-S/S2/T/T2/ASI/IP/DS3/E3,etc.), any outputs (DVB-S/S2/T/T2/ASI/IP/DS3/E3, etc),any processing(encoding/decoding/multiplexing/scrambling, etc.). EMR is one rack-unit (1-RU) signal processing platform with flexible card-insertion structure (6 slots).

EMR is available for any applications beyond your imagination including encoding, decoding, multiplexing, transcoding, transmodulating, etc..

Features :

Support flexible combination of any different type of cards

Massive internal multiplexing: maximum 8.5G data processing

Maximum 24 IRDs for DVB-S/S2/T/T2 FTA streams

Maximum 20 IRDs for DVB-S/S2/T/T2 encrypted streams

Multi-encoding support: SD/HD MPEG-2/MPEG-4/H.264

Maximum 24 programs encoding/decoding

Maximum 144 programs transcoding

Maximum 72 QAM outputs

Maximum 30 ASI inputs or outputs

Maximum 8 GbE IP inputs/outputs

Maximum 512 streams scrambling over IP

Support IPTV and conversion of MPTS from any type of inputs to SPTS

Maximum 180 programs statistic multiplexing

Maximum 512 SPTS IP input/output through GbE IP ports

Support dual-power supply and hot-swap

Function Cards:
Encoding/ Transcoding Modules	Modulating & Demodulating Modules
MPEG-2 Analog SD Encoding Card	DVB-S/S2 Modulation Card
MPEG-2 Digital Encoding Card	QAM Modulation Card
Dolby AC3 Encoding Card	DVB-T/H Modulation Card
MPEG-2 Analog Encoding Card	Descrambling Card
MPEG-2 HD Encoding Card	DVB-S/S2 Demodulation & Descrambling Card
H.264 Encoding & Transcoding Card	ABS-S Descrambling & Demodulation Receiving Card
H.264 Analog Encoding Card	DVB-T/T2 Demodulation Card
H.264 Digital Encoding Card	DVB-S/S2 Demodulation Card
H.264 HD Low Latency Encoding Card	DVB-C Demodulation & Descrambling Card
Multi MPEG-2/H.264 Encoding & Transcoding Card	ISDB-T/TB Demodulation Card
High-density Multi MPEG-2/H.264 Transcoding Card

Decoding Modules	Switch Modules
Multi-format Digital Decoding Card	ASI Switching Card
Analog SD Decoding Card	DS3 Switching Card
Analog Decoding Card	IP Switching Card
Digital Decoding Card	RF Switch Card
Digital HD Decoding Card	IP Optical Detection Switch Card
HD 4:2:2 Decoding Card	IP Optical Switch Card

Adapting Modules	Other Functional Modules
DS3 Bi-directional Adapting Card	ATSC M/H Multiplexing Card
DS3 Input Card	Statistic Multiplexing Card
DVB-T/DTMB Single Frequency Network Adapting	EPG Processing Card
Card	T2MI De-multiplexing Card
	T2MI Replacement Card
	HD SDI Optical Interface Card

ASI Interface Modules
ASI 4 Output Card	more and more...
ASI 5 Input Card
ASI 5 Input/Output Card
